Channels View
The Channels page shows an overview of the configuration values for all module channels.
The values for each channel indicate how that particular channel is configured on that
channel’s page. You can change certain configuration parameters in this view, not all of
them.
TIP:
To view or change the complete set of the channel
configuration, use Chxx view.

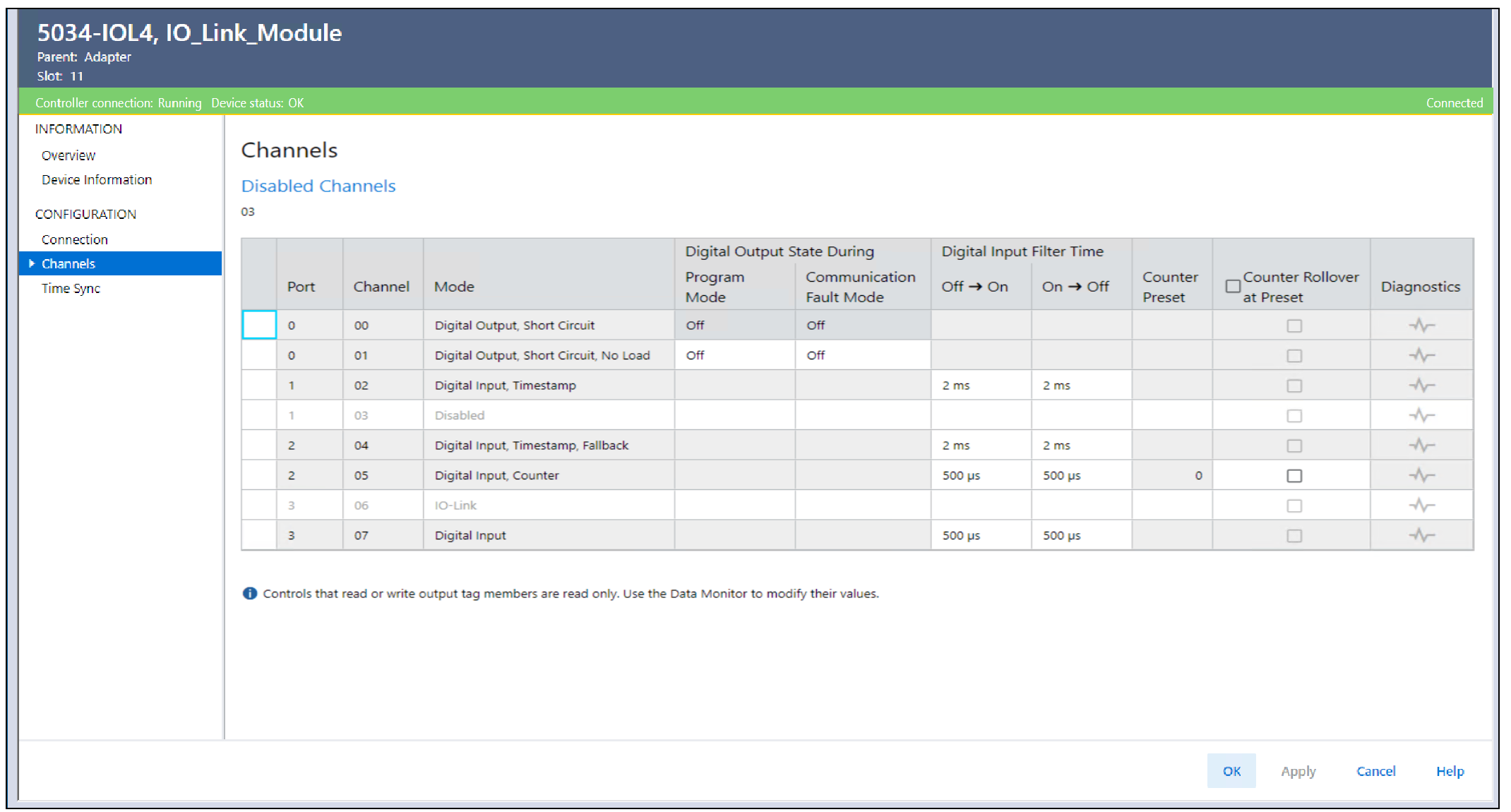

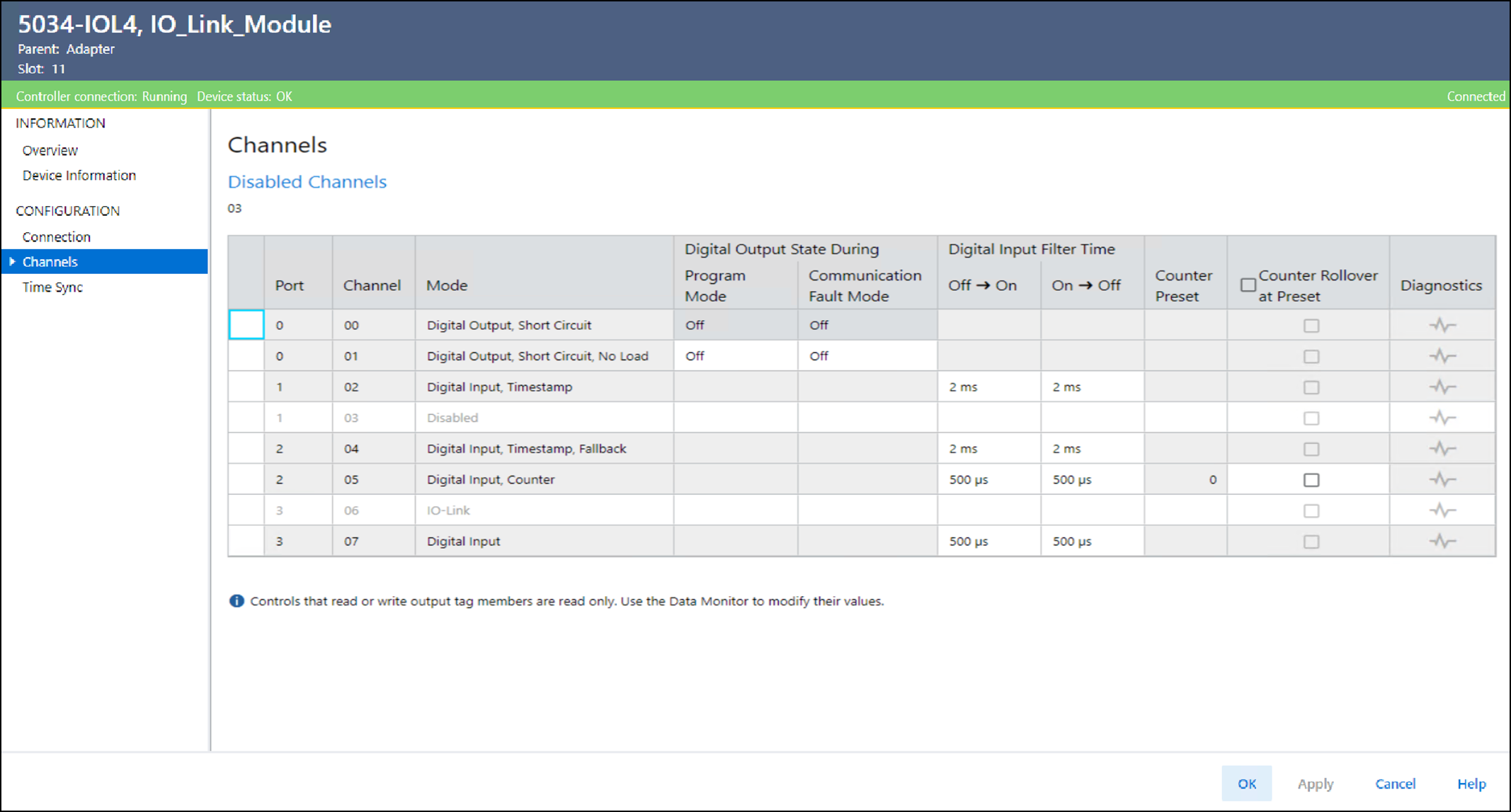

Channels View Example
Chxx Views
The Chxx views are displayed based on the channel modes configured in the Channel
Assignments tab under Device Definition dialog.
Available Chxx views are:
- Chxx - Digital Output
- Chxx - Digital Input
- Chxx - Counter
- Chxx - Digital Input, Timestamp
- Chxx - IO-Link
- Chxx - Digital Input, Fallback
- Chxx - Digital Input, Timestamp, Fallback
