Chxx View
The Chxx view, where xx represents the channel number, shows the configuration options
available for the respective channel.
You can do the following actions on this view:
- Disable the channel, if desired
- Change the input type
- Set the notch filter
- Enable or disable open wire detection
- Set the scaling and recalculate all configurations with engineering unit
- Set digital filter
- View channel diagnostics information
TIP:
To latch and configure alarm parameters, go to
Alarms view.

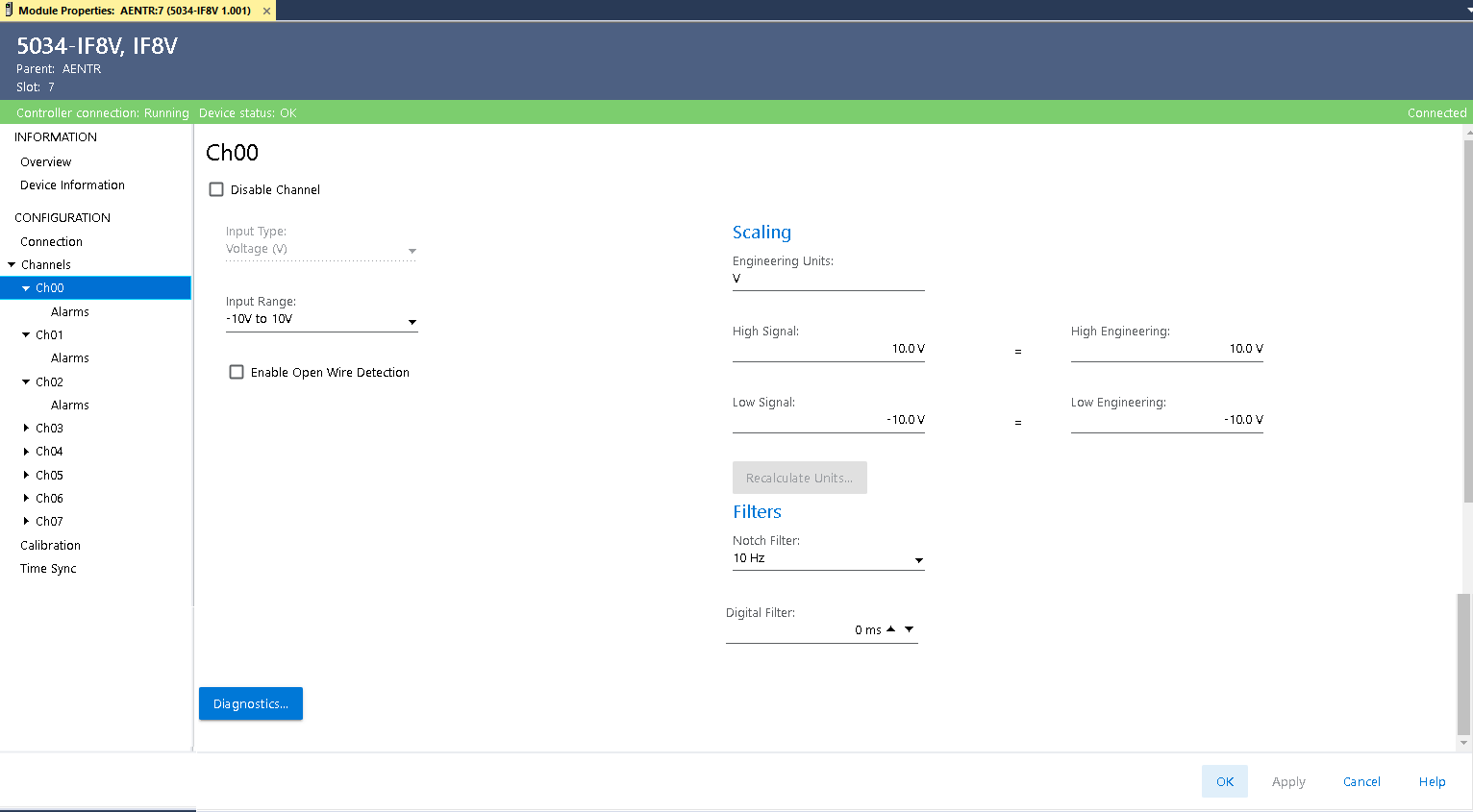

Chxx View Example
Recalculate Units
Recalculate Units lets you recalculate all configurations with engineering unit after
a scaling change. Consider the following:
- The Recalculate Units option is enabled when the scaling configuration is changed.
- Upon selecting Recalculate Units option, the recalculated new values based on the new scaling configuration are displayed together with the old values for you to verify before changing.
- If you select "Yes" to proceed with the change, the new values will be set but it gets applied when you select "Apply/OK".
- If you select "No" to cancel the change, the old values are retained. You can either select the Recalculate Units again or manually change those configurations based on the new scaling.
