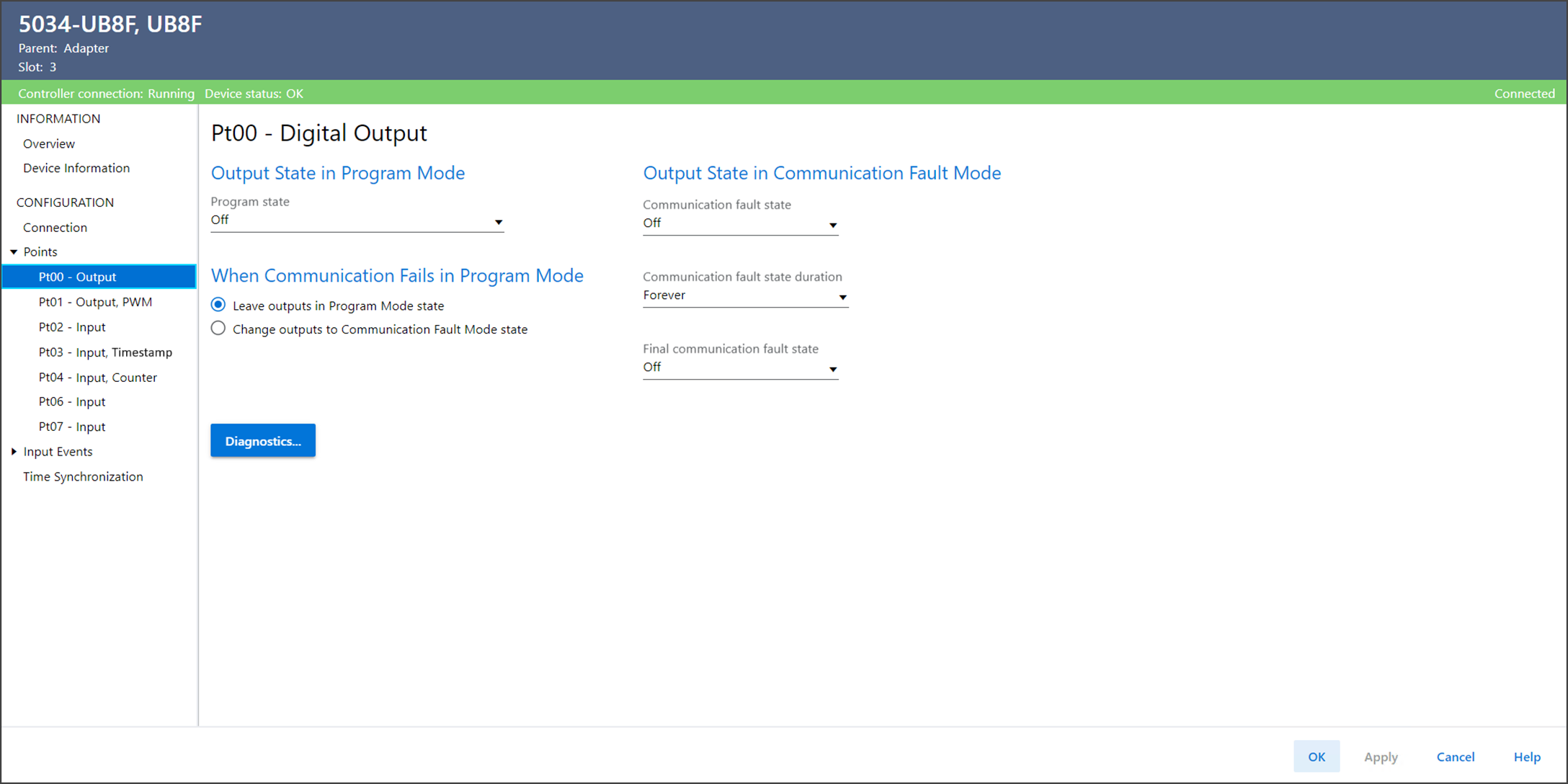

Ptxx – Digital Output View

Determines the behavior of each output when the controller transitions to Program Mode or Inhibit mode. While in Program Mode or Inhibit mode, outputs from the controller are ignored and the output behaves as follows:

Off – Output is 0 or Off.
On – Output is 1 or On.
Hold – Output maintains the last state.

Determines what happens to the output of each point after a communication fault occurs and the module enters Communication Fault Mode.

Off – Output is 0 or Off.
On – Output is 1 or On.
Hold – Output maintains the current level.

Determines the length of time the Communication Fault Mode is held before the Final Fault State.

Determines whether the module transitions to On or Off after the Communication Fault Mode Output State Duration elapses. The default final state is Off.

If you choose Forever for Duration, you cannot choose a final state. The module retains its current Communication Fault Mode state.

Determines the output action if communication fails in Program Mode.

Program Mode – Indicates leaving outputs in Program Mode state.
Communication Fault Mode – Indicates changing outputs to Communication Fault Mode state.

Opens the Diagnostics dialog, which contains diagnostic information.
