5034-RTBT and 5034-RTBTS Removable Terminal Blocks with CJC

Use these RTBs with the 5034-IRT4I and 5034-IRT4IXT analog 4 input isolated RTD/TC modules to help achieve better accuracy.

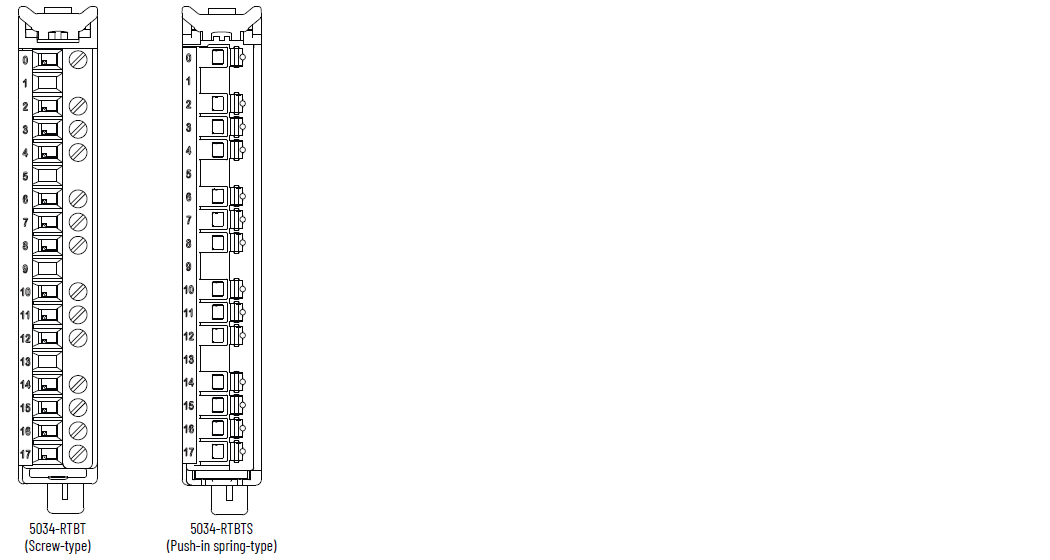

5034-RTBT and 5034-RTBTS Diagram
General Specifications - 5034-RTBT, 5034-RTBTS
Attribute
5034-RTBT, 5034-RTBTS
Voltage rating
240V AC
Current, max
10 A
Wiring specification
Dimensions (HxWxD), approx
93.8 x 14.7 x 31.3 mm (3.69 x 0.58 x 1.23 in.)
Weight, approx
27.0 g (0.95 oz.) - 5034-RTBT
17.0 g (0.60 oz.) - 5034-RTBTS
Enclosure type
None (Open-style)
North American temp code
T4
UKEX/ATEX temp code
T4
IECEx temp code
T4
