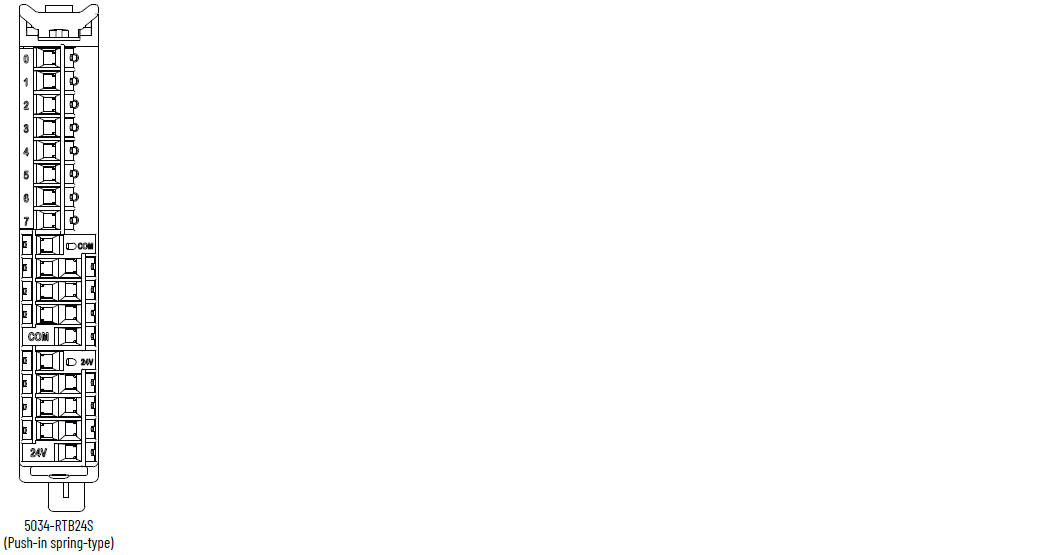

5034-RTB24S Removable Terminal Blocks

General Specifications - 5034-RTB24S
Attribute	5034-RTB24S
Voltage rating	240V AC
Current, max	10 A
Wiring specification	See Wiring Specifications for Removable Terminal Blocks
Dimensions (HxWxD), approx	93.8 x 14.7 x 31.3 mm (3.69 x 0.58 x 1.23 in.)
Weight, approx	20 g (0.70 oz.)
Enclosure type	None (Open-style)
North American temp code	T4
UKEX/ATEX temp code	T4
IECEx temp code	T4
