5034-IB8 and 5034-IB8XT Digital 8 Input Modules

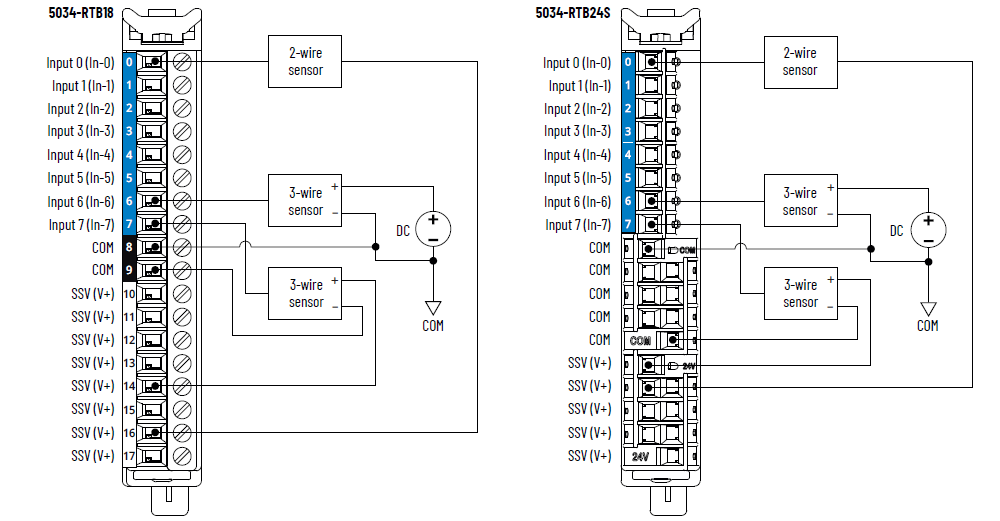

5034-IB8 and 5034-IB8XT Wiring Diagram
To establish more COM/V+ connections, use a 5034-RTB24S, or install a 5034-MBPTM or 5034-MBPTMXT next to the module.

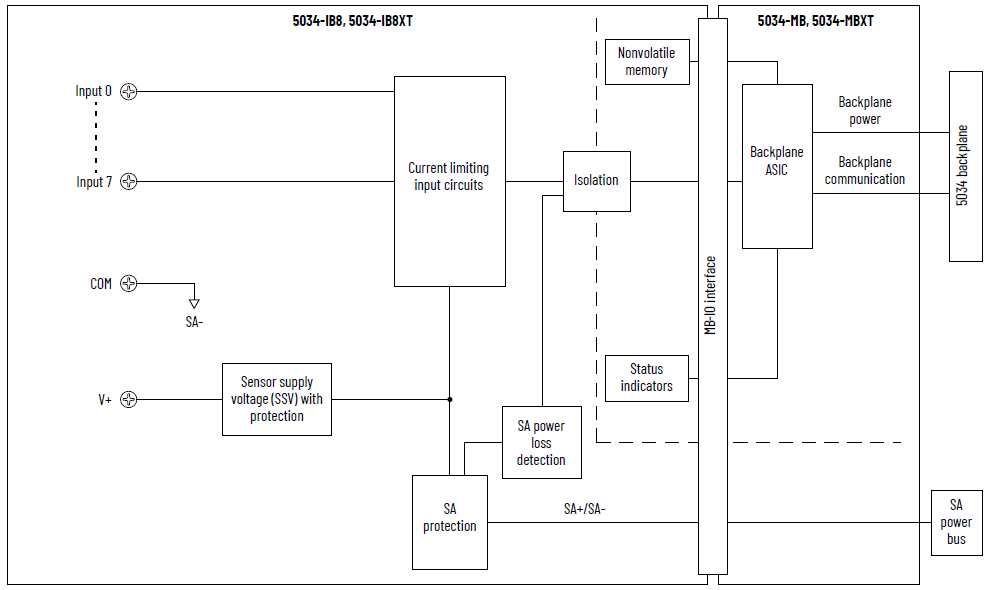

5034-IB8 and 5034-IB8XT Functional Block Diagram
Technical Specifications - 5034-IB8, 5034-IB8XT
Attribute
5034-IB8, 5034-IB8XT
On-state voltage range
10…30V DC
On-state current, min
2 mA
On-state current, nom
2.4 mA
On-state current, max
2.8 mA
Off-state voltage, max
5V DC
Off-state current, max
1.5 mA
Input impedance, min
3.57 kΩ @ 10V DC
Input impedance, nom
10 kΩ @ 24V DC
Input impedance, max
15 kΩ @ 30V DC
Input delay time (screw to backplane), max
Off-to-On
On-to-Off
150 µs
Input pulse width, min
Off-to-On
On-to-Off
125 µs
Input filter time
Off-to-On
On-to-Off
0 µs, 100 µs, 200 µs, 500 µs, 1 ms (default), 2 ms, 5 ms, 10 ms, 20 ms, 50 ms
Pulse and period measurements
Not supported
Simple counters, counter frequency
0…f
max
= 4000 Hz
4 (with 4 points as standard inputs)
Point 0…3 only
Timestamp of inputs
Yes, ±100 µs accuracy
CIP Sync
Yes, slave only ordinary clock
General Specifications - 5034-IB8, 5034-IB8XT
Attribute
5034-IB8, 5034-IB8XT
Number of inputs
8 channels (1 group of 8), sinking
Voltage category
12/24V DC sink
Input voltage, nom
24V DC
Input voltage range
10…30V DC
SA power voltage, nom
24V DC
SA power voltage range
10…30V DC
SA power current, nom
250 mA
SA power current, max
0.3 A
SA power current at no load
10 mA
SA reverse polarity protection
Yes
SSV voltage range
Follow SA supply
SSV current, max
0.2 A
SSV short-circuit protection
Yes
Power dissipation, max
(1)
1.15 W
Thermal dissipation, max
(1)
3.92 BTU/hr
Isolation voltage
250V (continuous), Basic Insulation Type, System to Field
No isolation between SA power and inputs
No isolation between individual inputs
RIUP support
Yes
Module to base keying
Electronic keying via programming software
RTB keying
Slot 1, Slot 4, Slot 8
RTB supported
5034-RTB18, 5034-RTB18S, 5034-RTB24S
Wiring category
(2)
2 - Signal ports
2 - Power ports
Wiring specification
Indicators
1 green/red module status indicator
1 green/red SA power status indicator
8 yellow I/O status indicators
Dimensions (HxWxD), approx
123.6 x 15.0 x 66.4 mm (4.87 x 0.59 x 2.61 in.)
Weight, approx
43.0 g (1.52 oz.) – 5034-IB8
46.0 g (1.62 oz.) – 5034-IB8XT
Enclosure type
None (Open-style)
North American temp code
T4
UKEX/ATEX temp code
T4
IECEx temp code
T4
(1) Value is measured at 60 °C (140 °F). Power dissipation varies with temperature.
(2) Use this Conductor Category information for planning conductor routing. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. Use this Conductor Category information for planning conductor routing as described in the appropriate System Level Installation Manual.
