Points View
Use Points to view or configure the points for the device.

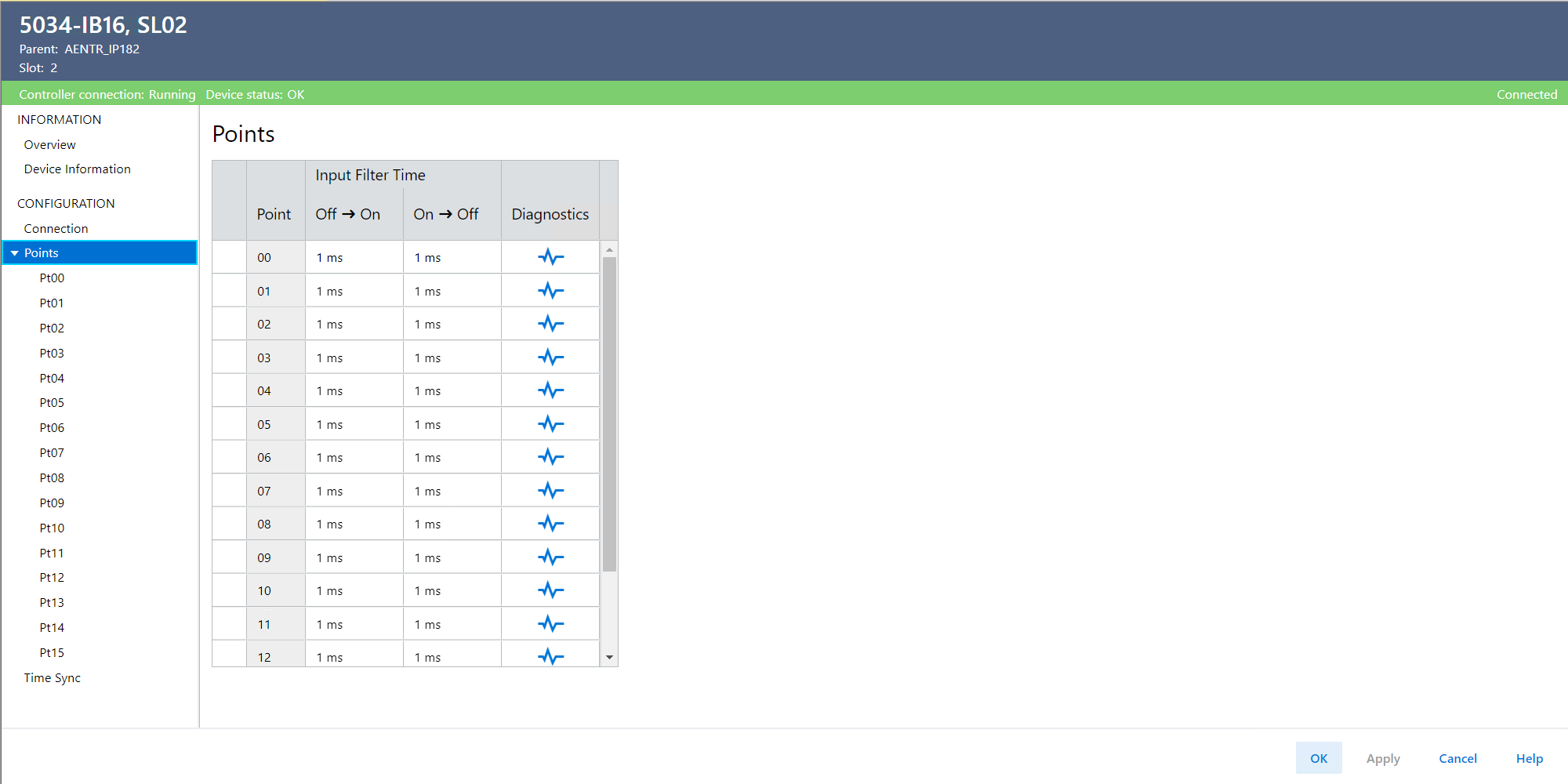

Points View Example
Ptxx View
If you choose Timestamp Data for Input Data in the Device Definition dialog, the
Points view expands.
The Ptxx view shows the configuration options available when you use Timestamping on
a point.
Select each Ptxx to configure it as necessary for your application.

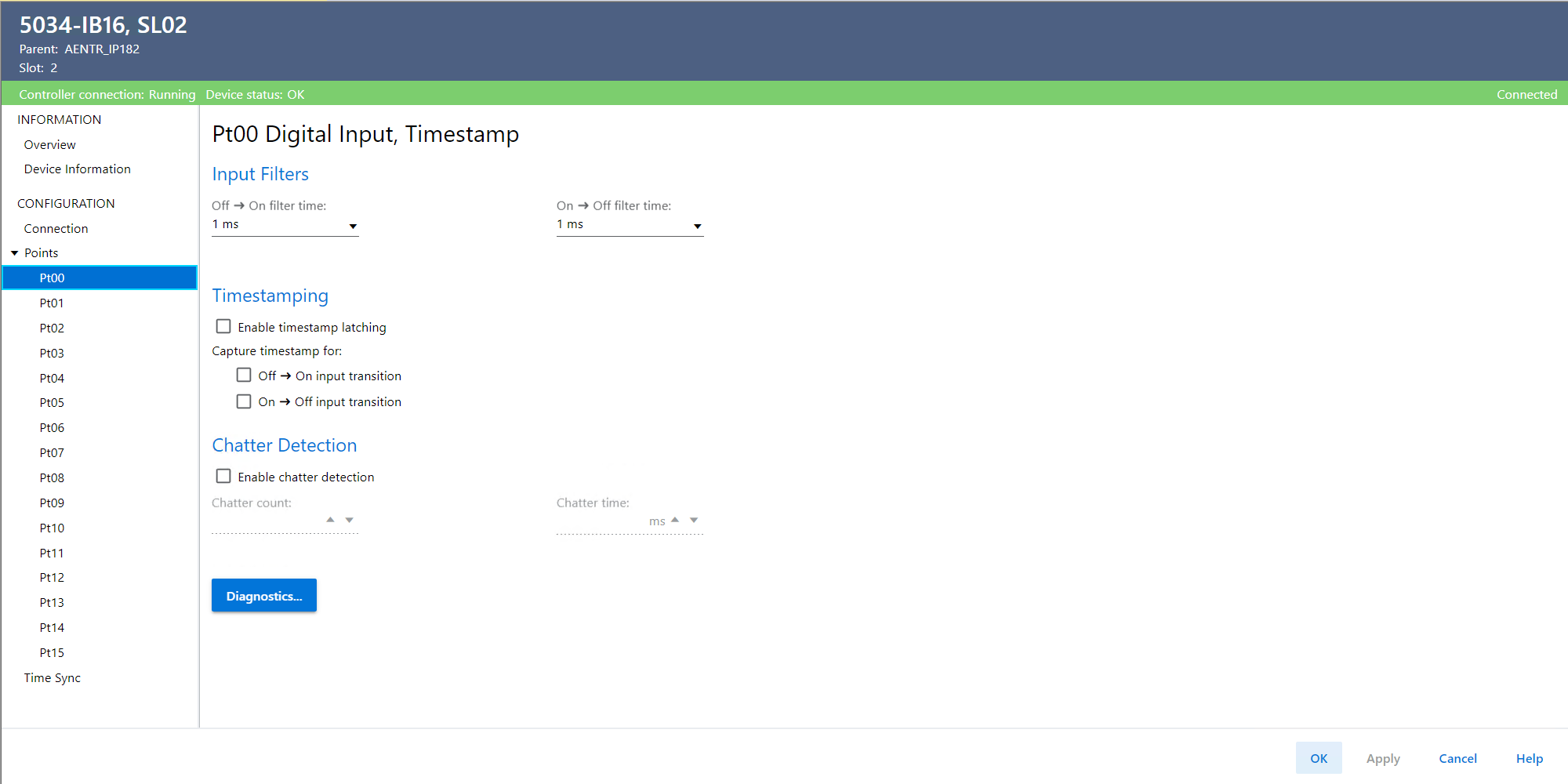

Ptxx View Example
Ptxx Diagnostics
To view the Ptxx diagnostics, select Diagnostics in the Points or Ptxx view.

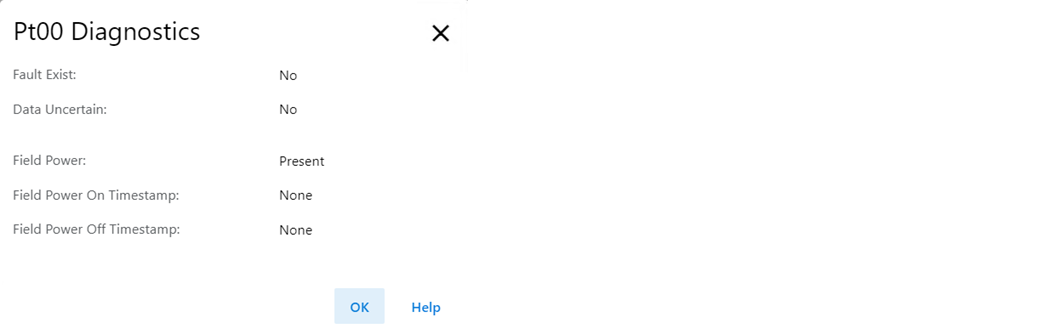

Ptxx Diagnostics Example
