Points View
Points is only available if you choose This Controller for the Configured By parameter on
the Module Definition dialog.
You must configure each point to use it in a safety application. The outputs are disabled
by default.

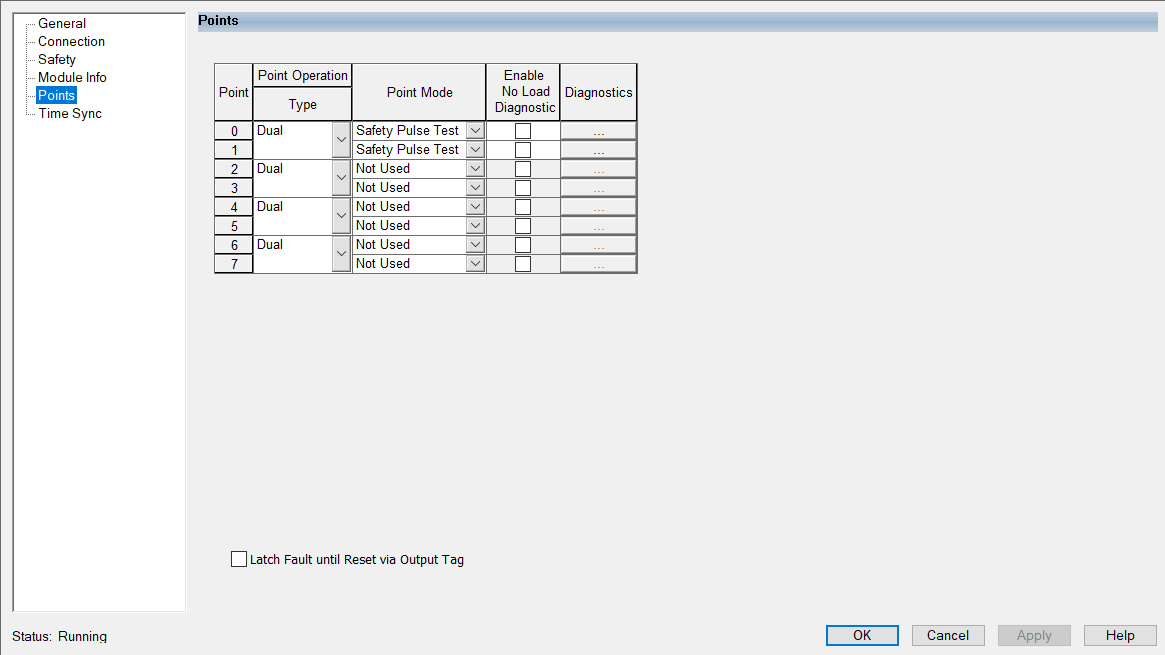

Points View Example
Ptxx Diagnostics
To view the Ptxx diagnostics, select Diagnostics in the Points view.

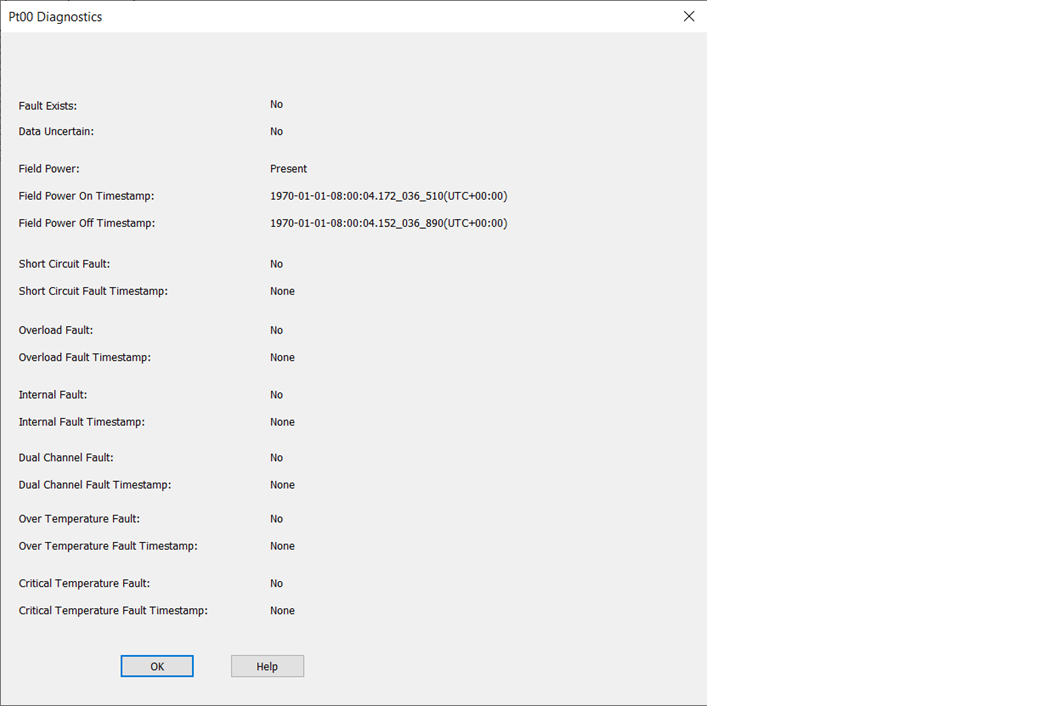

Ptxx Diagnostics Example
