5034-IB8S and 5034-IB8SXT Safety Digital 8 Input Modules
For more examples of wiring diagrams for 5034-IB8S and 5034-IB8SXT that can be used
in functional safety applications, see the PointMax Digital I/O Modules User Manual,
publication 5034-UM002. The wiring configuration
affects the safety application level to which a PointMax safety I/O module is
suitable.

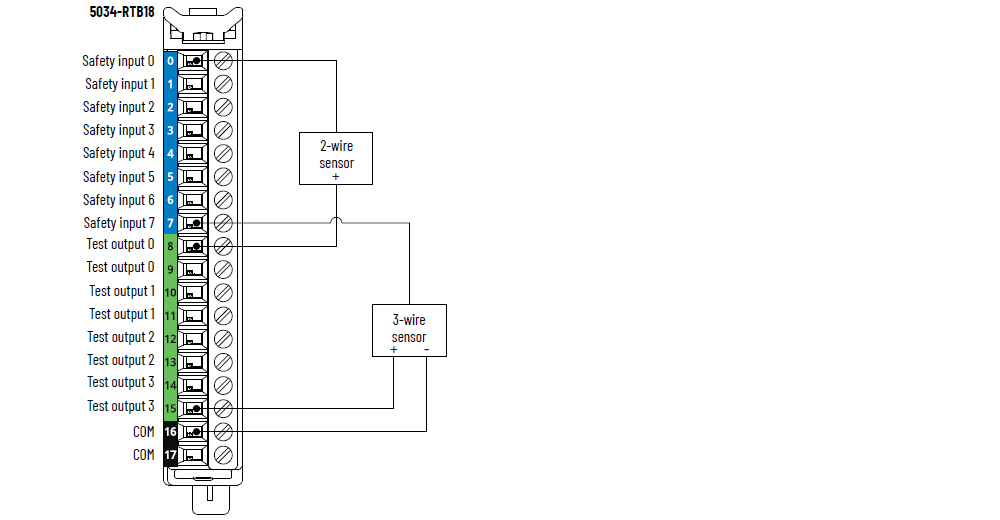

5034-IB8S and 5034-IB8SXT Wiring Diagram – 2-wire and 3-wire Sensor
Wiring
All test outputs support muting lamp outputs. |

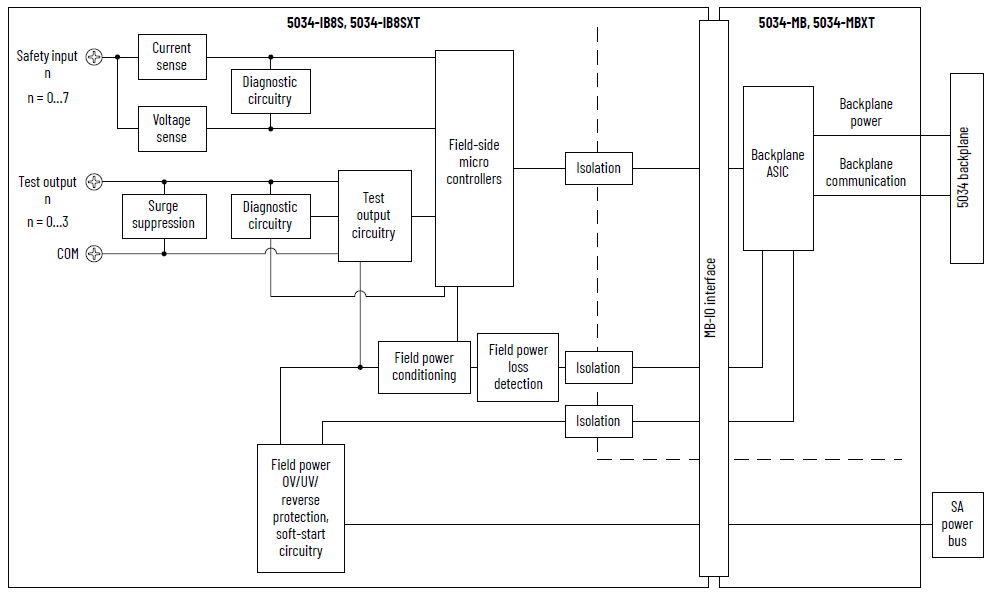

5034-IB8S and 5034-IB8SXT Functional Block Diagram
Attribute | 5034-IB8S, 5034-IB8SXT |
|---|---|
On-state voltage range | 10…30V DC |
On-state current, min | 2.2 mA @ 10V DC |
On-state current, nom | 2.4 mA @ 24V DC |
On-state current, max | 2.5 mA @ 30V DC |
Off-state voltage, max | 5V DC |
Off-state current, max | 1.5 mA |
Input delay time Off-to-On, user-selectable filter time | 0 ms (default), 2 ms, 5 ms, 10 ms, 20 ms, 50 ms |
Input delay time On-to-Off, user-selectable filter time | 0 ms (default), 2 ms, 5 ms, 10 ms, 20 ms, 50 ms |
Safety class (1) | Up to and including Cat. 4 / PL e acc. to EN ISO 13849-1, SIL
3 acc. to IEC 61508 |
SRT (2) | 7 ms @ RPI of 2 ms |
Test output current per point, max | 0.7 A |
Test output current per module, total | 2.8 A |
Test output pulse width, max | 0.7 ms |
Test output pulse period, typical | 512 ms |
Test output field capacitance, max | 100 nF |
Surge current per test output, max | 2.4 A for 50 ms, repeatable every 2 s The module current rating cannot exceed 5 A. |
Test output on-state voltage drop, max | 0.5V DC @ 0.7 A |
Test output off-state leakage current, max | 0.5 mA |
Test output off-state voltage, max | 5V DC |
Muting lamp fault threshold current, max | 6 mA |
Muting lamp fault threshold current, min | 1.8 mA |
Test output short to ground/overload protection | Yes (per point), 4 A typical |
Module over-temperature detection | Yes |
SA supply reverse voltage protection | Yes |
SA supply overvoltage protection, max | 60V DC |
CIP Sync | Yes, slave only ordinary clock |
(1) See the PointMax Digital I/O Modules User Manual,
publication 5034-UM002, for
Safety Application Suitability Levels and Safety Data for
safety modules. (2) The input safety reaction time (SRT) is the time from
when the signal changes on an input terminal to when safety
data is sent to the safety controller. | |
Attribute | 5034-IB8S, 5034-IB8SXT |
|---|---|
Number of safety inputs | 8 |
Input type | IEC 61131-2 (Type 3), current sinking |
Number of Test outputs/Muting Lamp outputs | 4 |
Test output type | Sourcing |
SA power nominal operating supply voltage | 24V DC |
SA power operating voltage range | 18…30V DC |
SA power current, nom | 2.9 A |
SA power current, max | 2.9 A |
SA power current at no load | 19 mA @ 24V DC |
Power dissipation, max | 1.55 W |
Thermal dissipation, max | 5.29 BTU/hr |
Isolation voltage | 250V (continuous), Basic Insulation Type, System to Field No isolation between SA power and input ports No isolation between individual inputs |
RIUP support | Yes |
Module to base keying | Electronic keying via programming software |
RTB keying | Slot 1, Slot 4, Slot 14 |
RTB supported | 5034-RTB18, 5034-RTB18S |
Wiring category (2) | 2 - Signal ports 2 - Power ports |
Wiring specification | |
Indicators | 1 green/red module status indicator 1 green/red SA power status indicator 8 yellow/red I/O status indicators |
Dimensions (HxWxD), approx | 123.6 x 15.0 x 66.4 mm (4.87 x 0.59 x 2.61 in.) |
Weight, approx | 46.0 g (1.62 oz.) – 5034-IB8S 49.0 g (1.73 oz.) – 5034-IB8SXT |
Enclosure type | None (Open-style) |
North American temp code | T4 |
UKEX/ATEX temp code | T4 |
IECEx temp code | T4 |
(1) Use this Conductor Category information for planning
conductor routing. See the Industrial Automation Wiring and
Grounding Guidelines, publication 1770-4.1. Use this
Conductor Category information for planning conductor
routing as described in the appropriate System Level
Installation Manual. | |
