Channels View
The Channels view shows an overview of the configuration values for all module
channels.
TIP:
Not all channel configurations are included in
Channels view. To view or change the complete set of the channel configuration and
also to view the diagnostics information for the channel, use Chxx view.
You can do the following actions on this view for all the channels:
- Disable the channel, if desired.
- Change the output type and output range.
- Enable or disable no load detection
- Enable or disable hold for initialization
- Set the scaling and recalculate all configurations with engineering unit.
- Configure the connection fault handling
You can use this view to monitor the configuration for all channels in the module. To
view the diagnostics information for the channel, go to respective Chxx view.

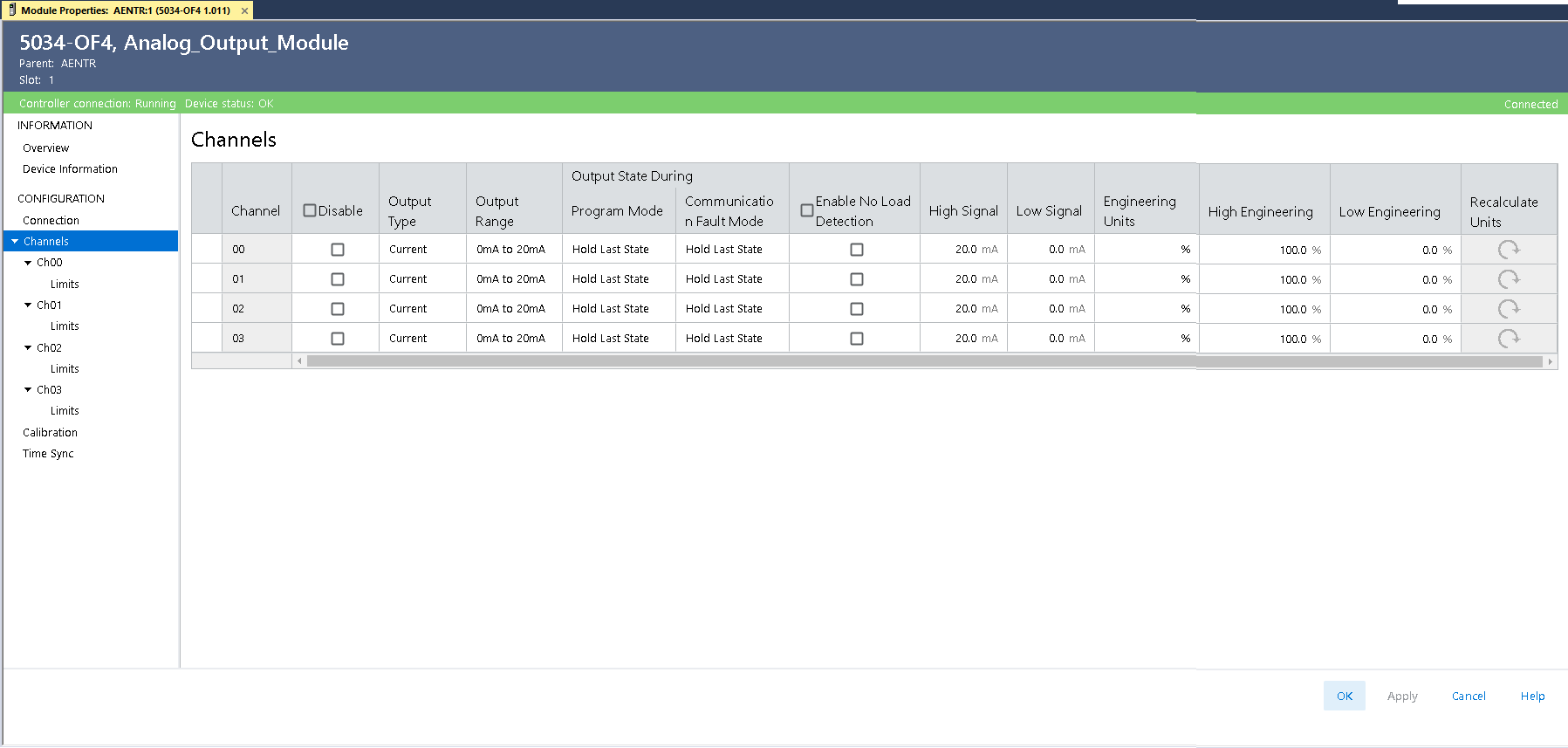

Channels View Example
