Alarms View

Each channel on the input module has an Alarms view. You can do the following actions on this view:
  • Disable all the alarms.
  • Enable/Disable latching and set the alarm limits for the process alarms:
    • High High
    • High
    • Low
    • Low Low
    • Deadband
  • Enable/Disable latching and set limit for the rate alarm.
    TIP: Rate Alarm Limit of 0.0 disables the rate alarm.

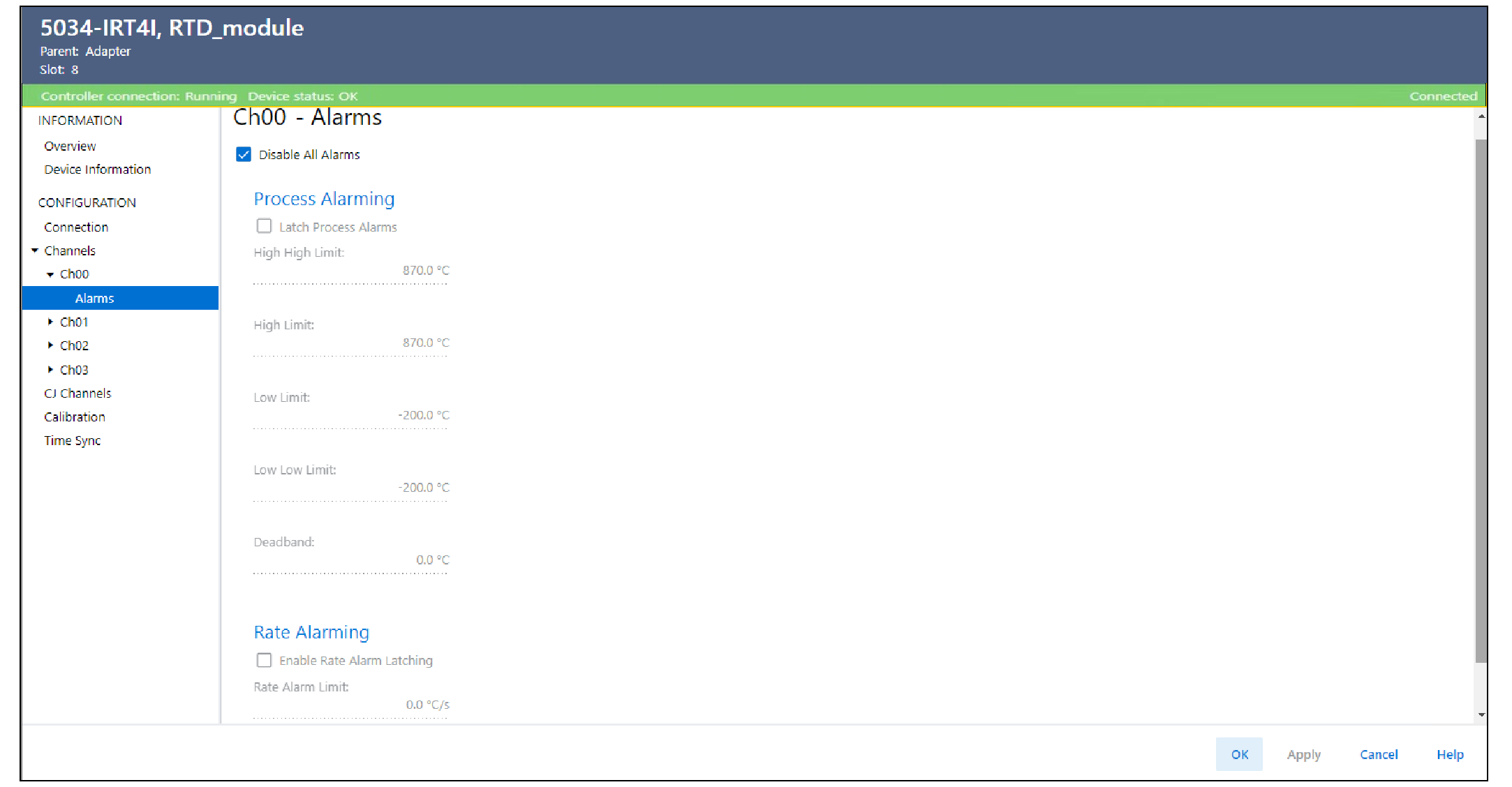

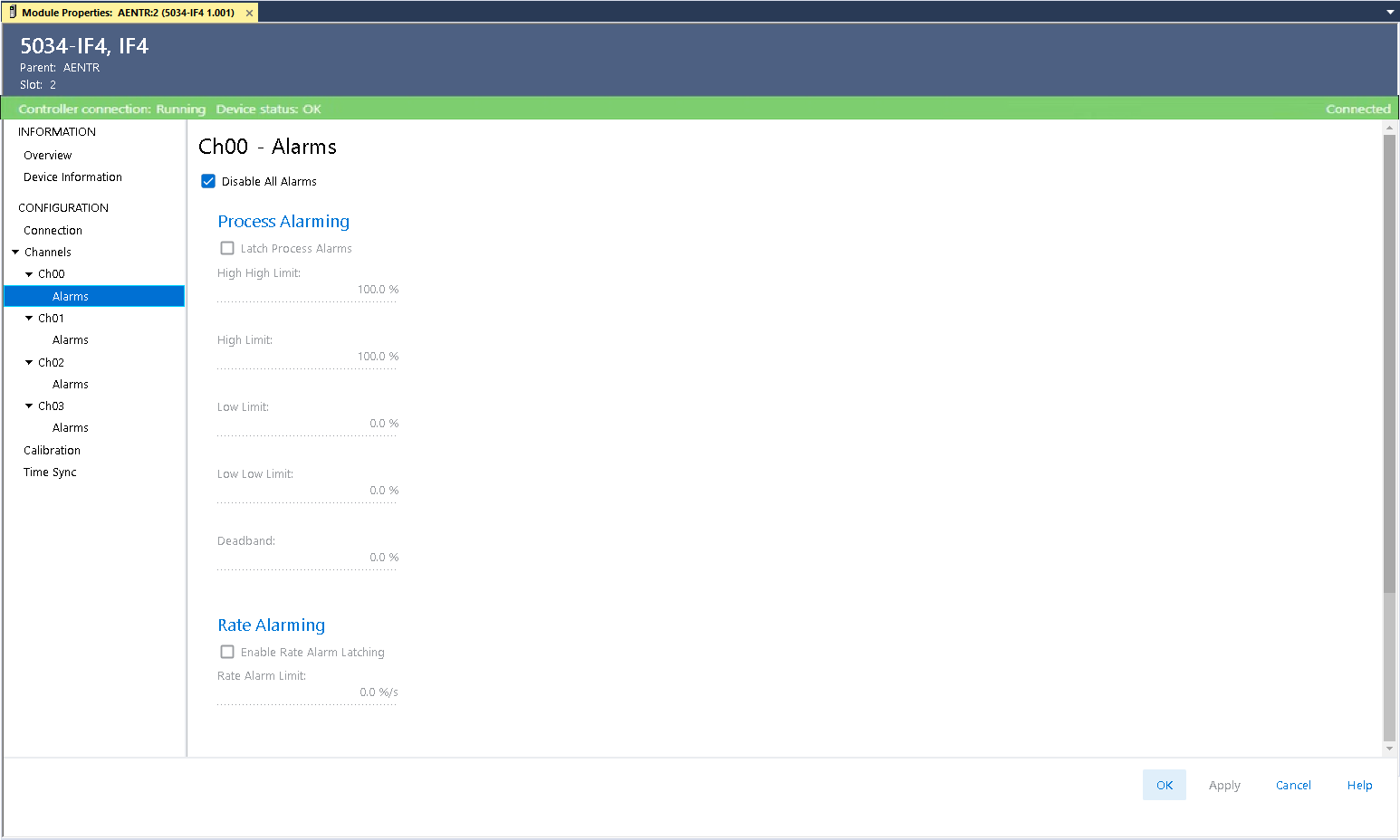

Chxx - Alarms View Example
