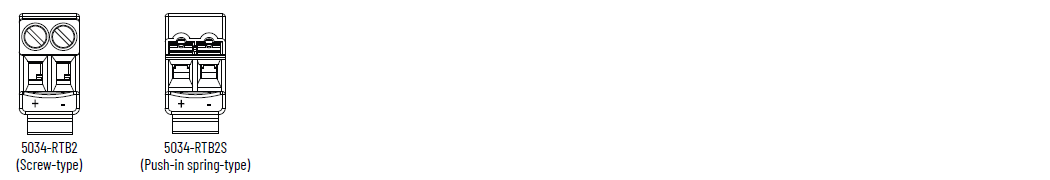

5034-RTB2 and 5034-RTB2S Removable Terminal Blocks

Use these RTBs with the 5034-MBSA and 5034-MBSAXT mounting bases. These catalogs are not available for purchase individually. They can only be ordered in a pack of 5 (5034-RTB2-QTY5 or RTB2S-QTY5).

General Specifications - 5034-RTB2, 5034-RTB2S
Attribute	5034-RTB2, 5034-RTB2S
Voltage rating	240V AC
Current rating per position at 60 °C (140 °F)	10 A
Wiring specification	See Wiring Specifications for Removable Terminal Blocks
Dimensions (HxWxD), approx	18.6 x 9.3 x 21.15 mm (0.73 x 0.37 x 0.83 in.)
Weight, approx	3.5 g (0.12 oz.) - 5034-RTB2 2.1 g (0.07 oz.) - 5034-RTB2S
Enclosure type	None (Open-style)
North American temp code	T4
UKEX/ATEX temp code	T4
IECEx temp code	T4
