Calibration Procedure
    This procedure describes how to calibrate a channel on the analog input module for use with
        a Voltage (V) input type.
Apply Low and High Signal references to the analog input module to calibrate it. The
        references must match the input range the channel is using.


| Input Type | Input Range | Low Calibration Reference | High Calibration Reference |
|---|---|---|---|
| Voltage (V) | -10…10V | 0.0V | 10.0V |
| 0…10V | 0.5V | 10.0V | |
| 0…5V | 0.5V | 5.0V |
- Connect the voltage calibrator to the channel being calibrated.
- Go online with the project and make sure that the controller is in Program Mode.
- Confirm that the channel to be calibrated is configured for the correct Input Range.

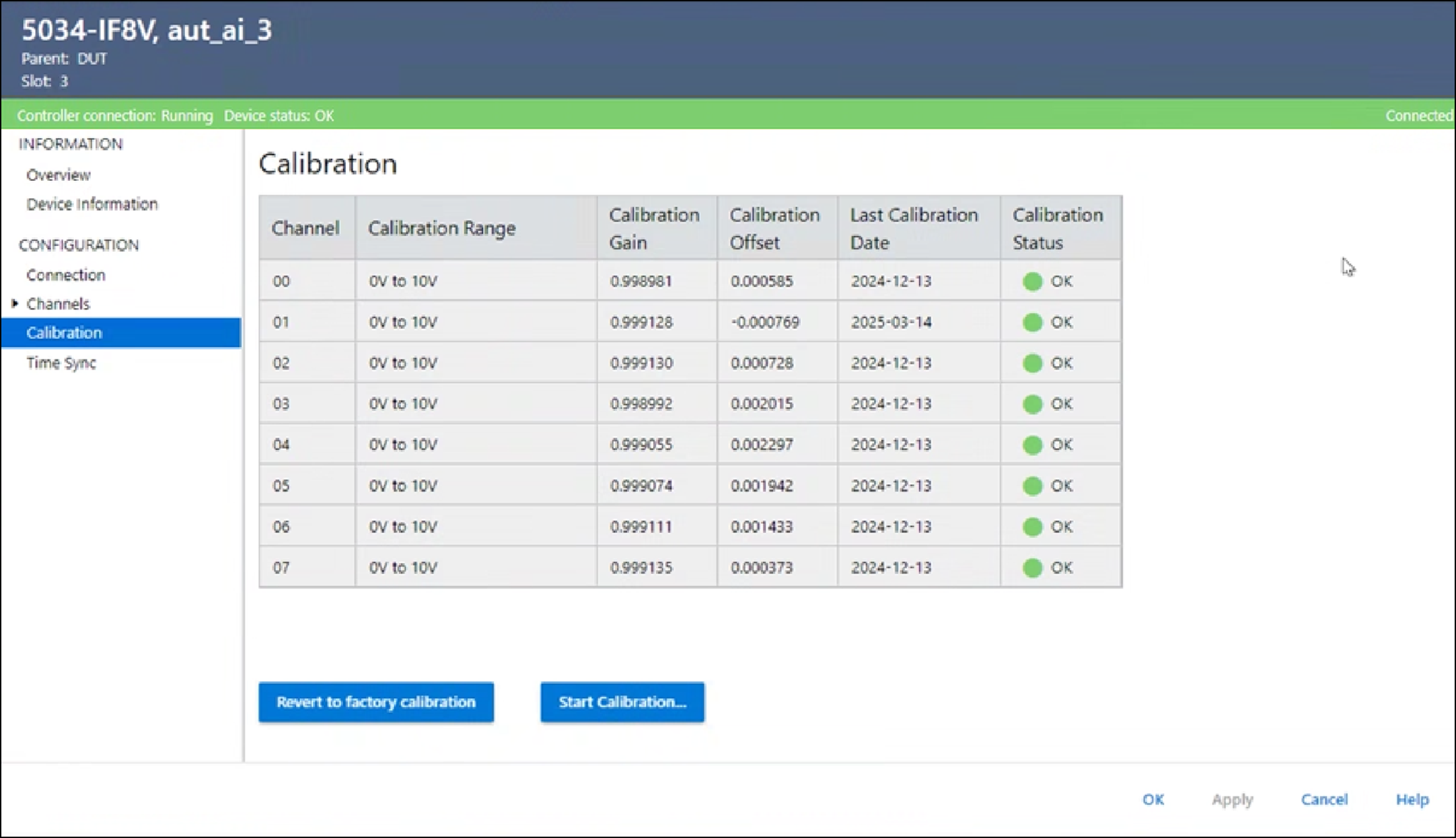

- On the Calibration view in the Module Properties dialog, select Start Calibration.
- When the dialog appears to confirm that you want to calibrate the channel, select OK.

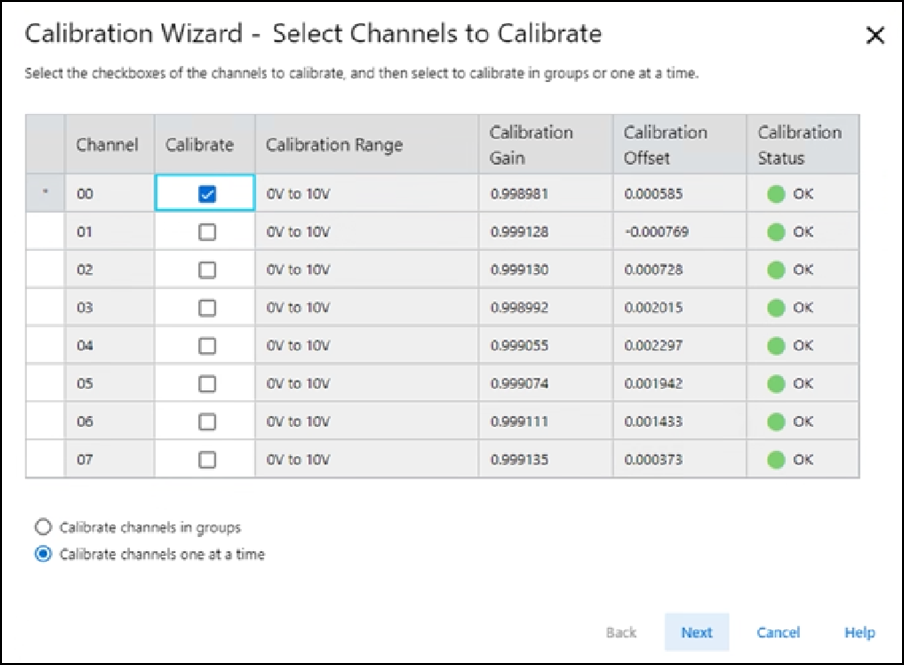

- Select the channels one at a time or in groups to calibrate and then select Next.
- When the Attach Low Reference dialog appears, set the calibrator to the low reference and apply it to the channel.
- Select Next. The Low Reference Results dialog appears and indicates the status of the calibrated channel.
- If the Status is OK, select Next. If the Status is not OK, repeat the calibration process.
- When the Attach High Reference dialog appears, set the calibrator to the high reference and apply it to the channel.

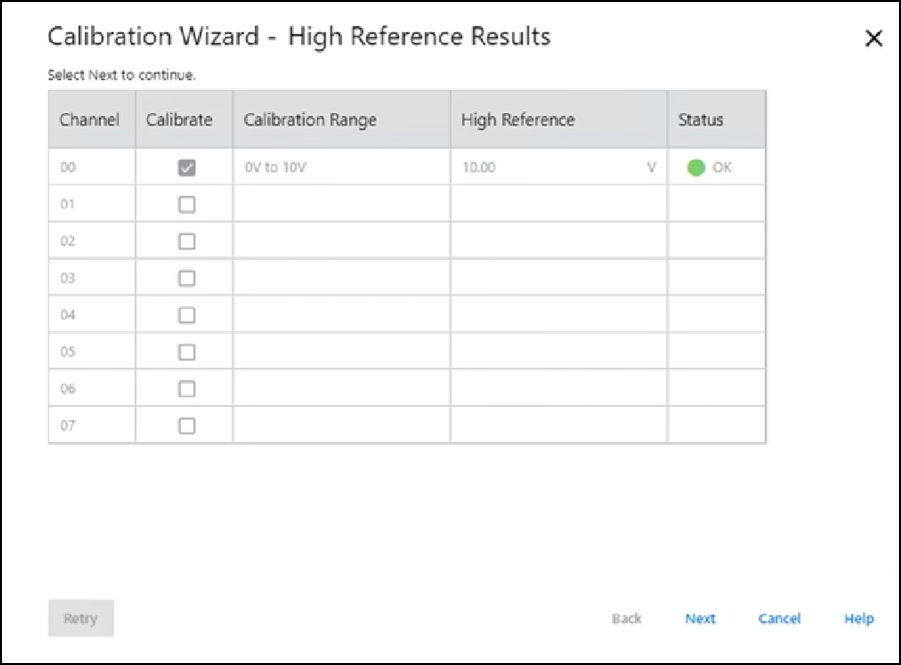

- Select Next. The High Reference Results dialog appears and indicates the status of the calibrated channel.
- If the Status is OK, select Next. If the Status is not OK, repeat the calibration process.
- When the Calibration Completed dialog appears, select Finish.
