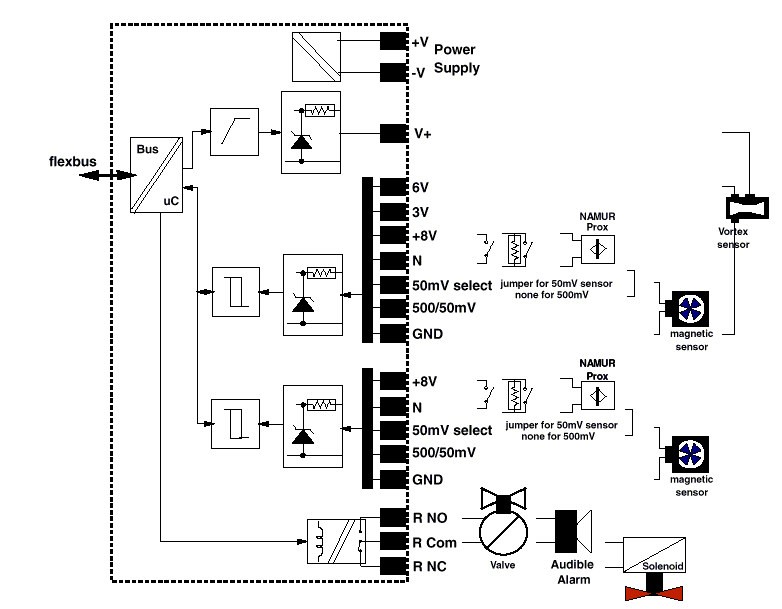

Wiring Diagram 1797-IJ2

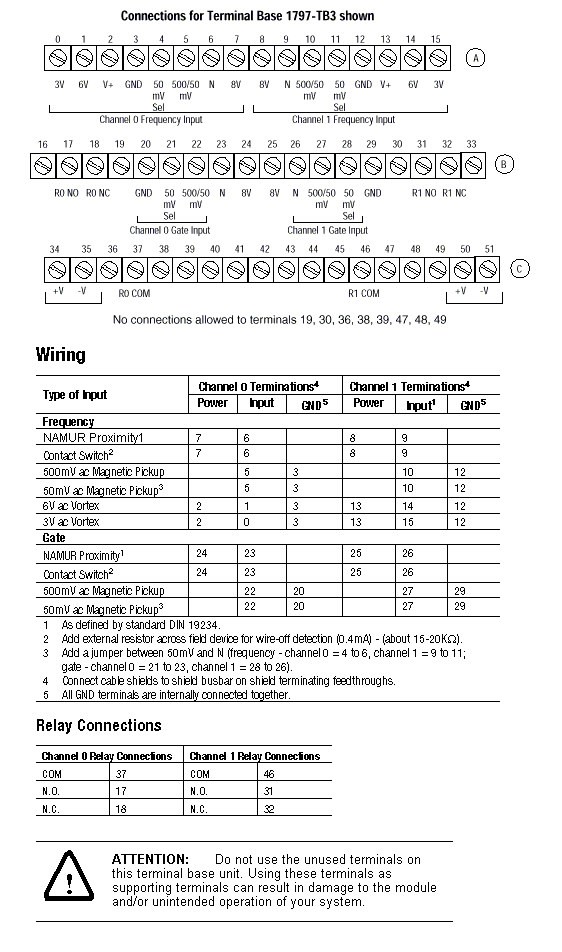

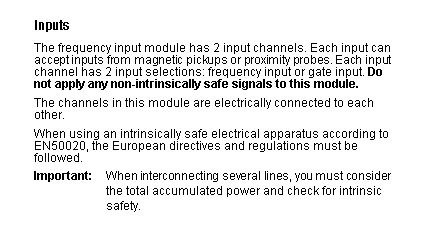

The 1797-IJ2 uses the 1797-TB3 or –TB3S Terminal Base. Wiring to the Terminal Base is shown below.
