Wiring Diagram - 1756-IF16 and -IF8, Differential Current

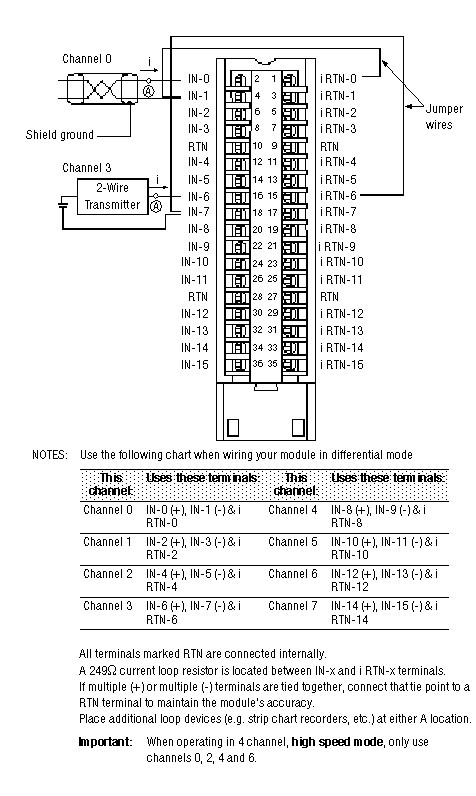

1756-IF16 Differential Current Wiring Diagram
If16_shg (2)
1756IF16diffcurnt
1756-IF8 Differential Current Wiring Diagram
IF8_shg}
1756IF8diffcurnt
