Runtime Application Protocol

Runtime Application Protocol

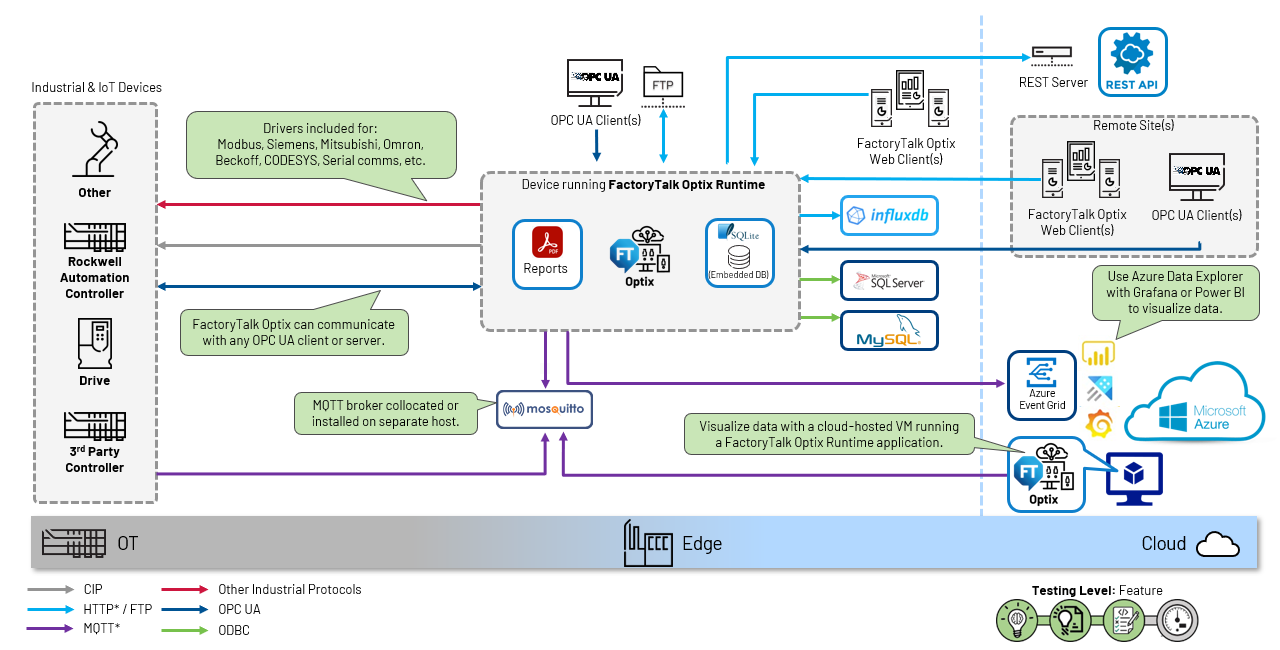

This image depicts a FactoryTalk Optix runtime reference architecture
FactoryTalk® Optix™
 provides a wide variety of built-in, reliable connectivity options – from the controller to the cloud.
  • Preferred connectivity to
    ControlLogix®
    ,
    CompactLogix™
    ,
    Micro800™
    , and
    MicroLogix™
    controllers
  • Integration of the OPC UA information model and can communicate with any OPC UA client or server
  • MQTT client connectivity for pub/sub plus an embedded MQTT broker
  • Connectivity to REST servers
  • Database options include Embedded SQLite, External InfluxDB, and ODBC support for MySQL and MS SQL Server
  • Web client connectivity with secure web server capabilities
  • Azure® connectivity via Azure Event Grid
Third-party driver support includes:
  • Allen-Bradley®
    EtherNet/IP™
    driver
  • Beckhoff TwinCAT
  • CODESYS
  • Micro800™
    controllers driver
  • MicroLogix™
    1400 controllers driver
  • Mitsubishi MELSEC FX3U
  • Mitsubishi MELSEC Q/FGX5U
  • Modbus driver
  • Omron
    EtherNet/IP™
    driver
  • Omron FINS driver
  • Rockwell Automation®
    EtherNet/IP™
  • Serial communication
  • Siemens S7 TCP driver
  • Siemens S7 TIA PROFINET driver
