Check the Controller Organizer to see if there is a warning icon on the adapter.
Warning Icon in Controller Organizer
If a warning icon is present, open the Module Properties and check the status bar to
identify the type of fault.
Fault Message in Status Bar

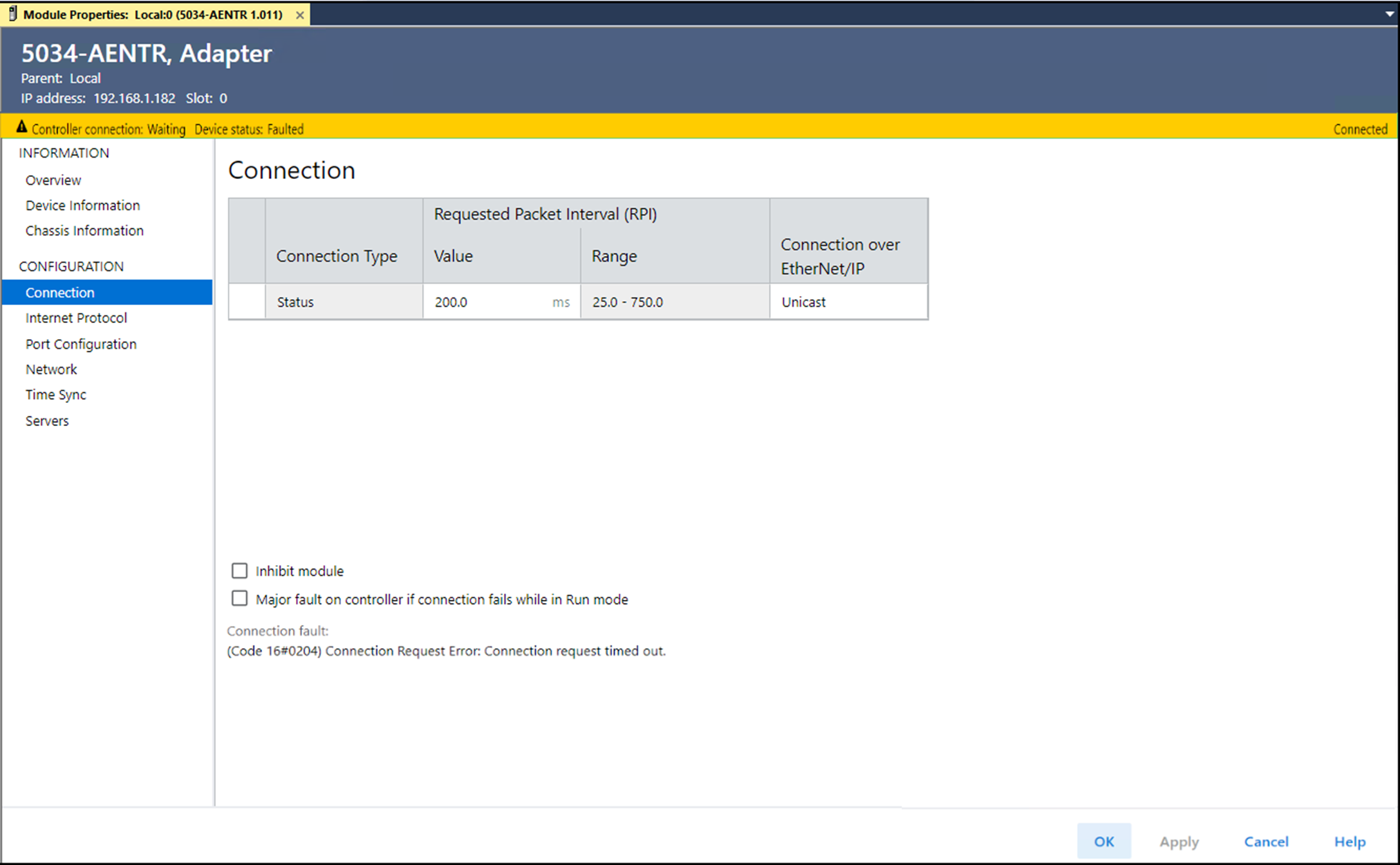

If connection is faulted, go to the Connection view and check the error code in the
Connection Fault area.
Connection Fault Description with Error Code
Error Code
Action
0x204
Open the adapter module properties.
Go to Chassis Information view and check the base
status. If there is a fault, check the base details to
identifiy the fault.
Keying Error
Go to Device Information view to confirm that the physical module
is compliant or matches the configured identity.
For more information, see Electronic Keying in Logix 5000 Control
Systems Application Technique, publication LOGIX-AT001.
0x10
Go to Device Information view and check the firmware revision and
major fault status.
If firmware update is required, update the
firmware.
If the major fault is recoverable, reset the
adapter.
If the major fault is unrecoverable, replace the
adapter.

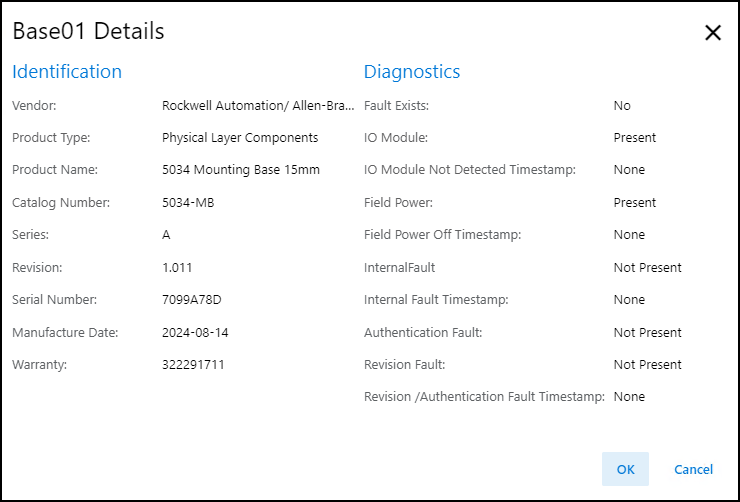

If a base is faulted, go to the Base Details view and check the Diagnostics for the base
to see the diagnostic condition.
Base Details Diagnostics
If a Time Sync fault is present, go to the Device Diagnostics dialog to check the Time
Synchronization status and Grandmaster clock identity.
Device Diagnostics
The Grandmaster clock identity must match with the network Grandmaster clock identity.
Also, check the Time Synchronization status of the adapter in the adapter Device
Diagnostics dialog.
